JF series Front Terminal Battery is specially designed for telecom applications, floating charge design life can reach 10 years. It adopts a special paste formula to improve battery charge acceptance. By stable performance and good consistency, it is a type of reserve power battery suitable for the application of outdoor telecommunication and other backup power supply. The design of a long &narrow structure and front terminal make it easy to be installed and maintained.
| Model | Nominal Voltage (V) | Capacity | Dimension | Weight | Terminal | ||||||||
| (Ah) | Length | Width | Height | Total Height | Kg | Lbs | |||||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||
| JF12-90 | 12 | 90 | 396 | 15.59 | 105 | 4.13 | 251 | 9.88 | 270 | 10.63 | 27.5 | 60.60 | M8 |

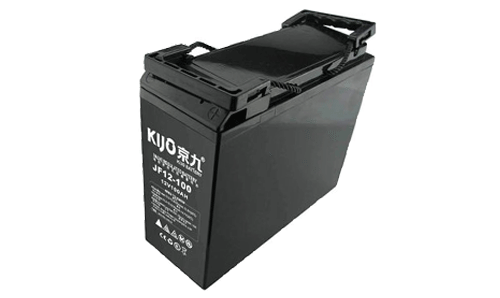

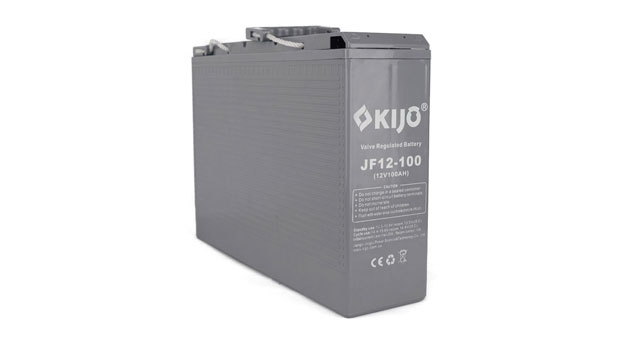

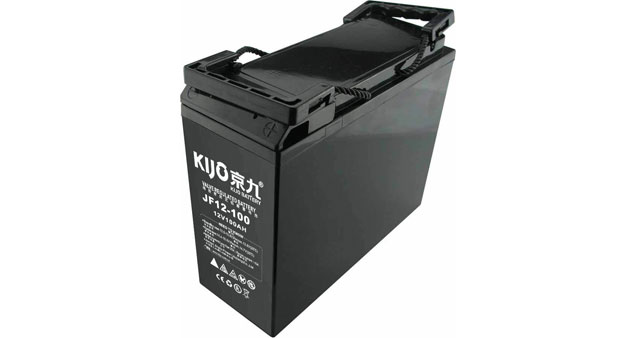

| JF12-100 | 12 | 100 | 394 | 15.51 | 110 | 4.33 | 286 | 11.26 | 286 | 11.26 | 31.0 | 68.30 | M8 |
| JF12-110 | 12 | 110 | 394 | 15.51 | 110 | 4.33 | 286 | 11.26 | 286 | 11.26 | 33.5 | 73.90 | M8 |
| JF12-125 | 12 | 125 | 551 | 21.69 | 110 | 4.33 | 288 | 11.34 | 288 | 11.34 | 40.5 | 89.30 | M8 |
| JF12-140 | 12 | 140 | 551 | 21.69 | 110 | 4.33 | 288 | 11.34 | 288 | 11.34 | 43.0 | 94.80 | M8 |

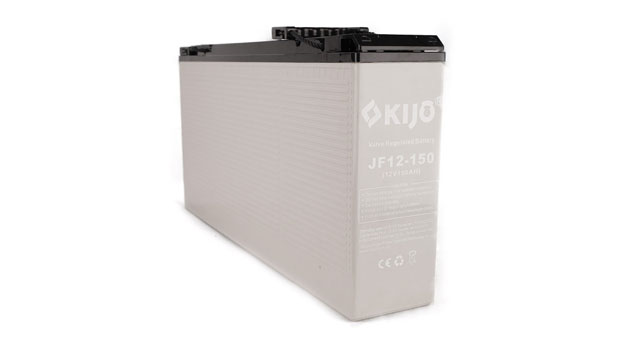

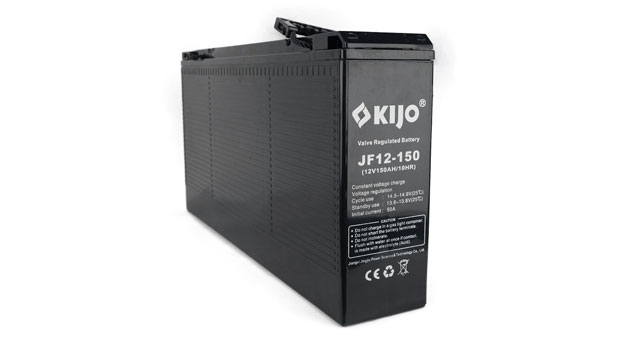

| JF12-150 | 12 | 150 | 551 | 21.69 | 110 | 4.33 | 288 | 11.34 | 288 | 11.34 | 45.0 | 99.20 | M8 |
| JF12-170 | 12 | 170 | 560 | 22.05 | 125 | 4.92 | 316 | 12.44 | 316 | 12.44 | 51.0 | 112.5 | M8 |
| JF12-180 | 12 | 180 | 560 | 22.05 | 125 | 4.92 | 316 | 12.44 | 316 | 12.44 | 53.5 | 118.0 | M8 |

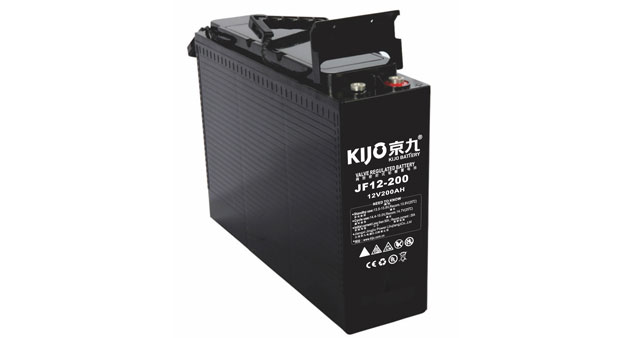

| JF12-200 | 12 | 200 | 560 | 22.05 | 125 | 4.92 | 316 | 12.44 | 316 | 12.44 | 58.7 | 129.0 | M8 |
Valve Regulated design, no free liquid electrolyte, Maintenance-free
Designed floating service life: 10 years @ 25˚C
Operating temperature range: -15˚C -35˚C
Special lead plaster and gel electrolytes for improving battery charging performance
Self-discharge rate ≤ 3% / month
Telecom power system
UPS system
DATA center
Solar power
Wind energy
etc
