By combining the newly developed Nanometer Gel electrolyte, high tin content cathode plate and AGM separator, JDG series battery enjoys excellent discharging performance, long cycle life and stable performance at high and low temperature surrounding.. JDG series is suited for all kinds of ranges for the energy storage, especially for renewable solar energy systems etc.
| Model | Nominal Voltage (V) | Capacity (C10) | Dimension | Weight | Terminal | ||||||||
| Ah | Length | Width | Height | Total Height | kg | lbs | |||||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||
| JDG12-33 | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 167 | 6.57 | 167 | 6.57 | 10 | 22.05 | M6 |
| JDG12-35 | 12 | 35 | 195 | 7.68 | 130 | 5.12 | 167 | 6.57 | 167 | 6.57 | 11.5 | 25.35 | M6 |

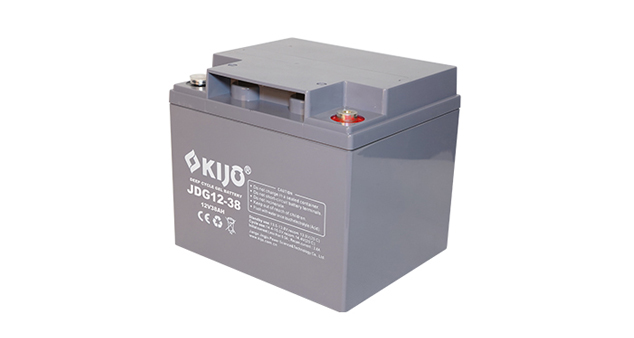

| JDG12-38 | 12 | 38 | 197 | 7.76 | 165 | 6.50 | 172 | 6.77 | 172 | 6.77 | 12.5 | 27.56 | M6 |
| JDG12-40 | 12 | 40 | 197 | 7.76 | 165 | 6.50 | 172 | 6.77 | 172 | 6.77 | 13.2 | 29.10 | M6 |
| JDG12-45 | 12 | 45 | 197 | 7.76 | 165 | 6.50 | 172 | 6.77 | 172 | 6.77 | 15 | 33.07 | M6 |
| JDG12-50 | 12 | 50 | 229 | 9.02 | 138 | 5.43 | 205 | 8.07 | 208 | 8.19 | 15.5 | 34.17 | M6 |
| JDG12-55 | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 205 | 8.07 | 208 | 8.19 | 16.5 | 36.38 | M6 |
| JDG12-65 | 12 | 65 | 350 | 13.78 | 166 | 6.54 | 175 | 6.89 | 175 | 6.89 | 21 | 46.30 | M8 |
| JDG12-70 | 12 | 70 | 260 | 10.24 | 168 | 6.61 | 208 | 8.19 | 211 | 8.31 | 21.8 | 48.06 | M8 |

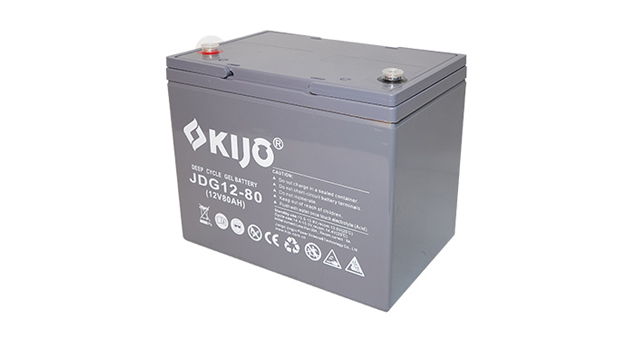

| JDG12-80 | 12 | 80 | 260 | 10.24 | 168 | 6.61 | 208 | 8.19 | 211 | 8.31 | 24 | 52.91 | M8 |
| JDG12-90 | 12 | 90 | 330 | 12.99 | 171 | 6.73 | 216 | 8.50 | 219 | 8.62 | 27 | 59.52 | M8 |

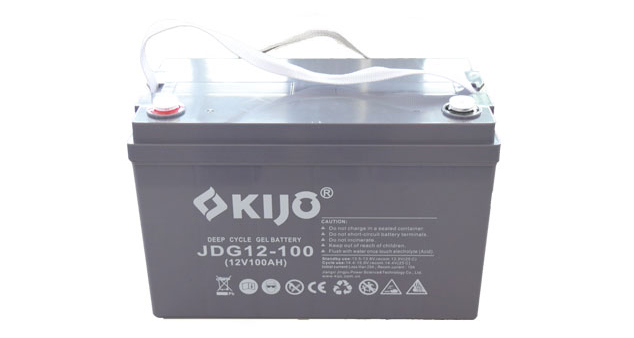

| JDG12-100 | 12 | 100 | 330 | 12.99 | 171 | 6.73 | 216 | 8.50 | 219 | 8.62 | 29.5 | 65.04 | M8 |

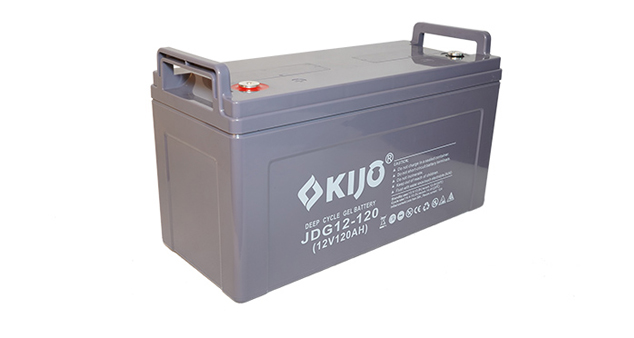

| JDG12-120 | 12 | 120 | 407 | 16.02 | 173 | 6.81 | 237 | 9.33 | 237 | 9.33 | 35 | 77.16 | M8 |
| JDG12-150 | 12 | 150 | 484 | 19.06 | 170 | 6.69 | 241 | 9.49 | 241 | 9.49 | 45 | 99.21 | M8 |

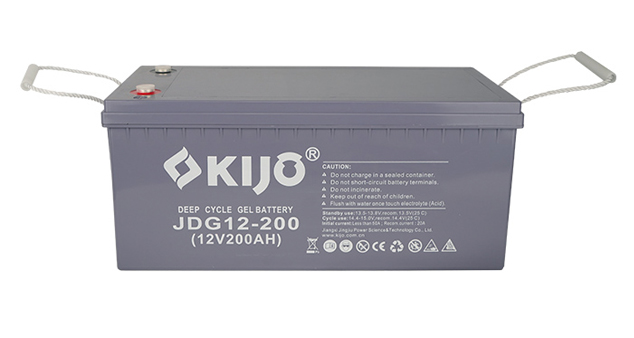

| JDG12-200 | 12 | 200 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 222 | 8.74 | 61.5 | 135.58 | M8 |
| JDG12-250 | 12 | 250 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 223 | 8.78 | 71 | 156.53 | M8 |
Valve sealed design, no free electrolyte, Maintenance -free
Designed floating service life:15 years @ 25 °C/68 °F.
Wide operating temperature range from -15°C to 35°C
Nanometer gel electrolytes eliminate the acid stratification and prolong cycle life
Low self-discharge rate: ≤3%/month.
UPS Systems
Portable Equipment
Renewable Energy Systems
Electric Utilities
Outdoor control Equipment
Railroad Utilities
Telecom Systems
Wheelchair
etc.
