JL2V series are renewable energy storage batteries, and adopt high elastic AGM separator and extra thicker plate with the special paste formula. The batteries have stable charge and discharge performance, low self-discharge rate, long service life. They are very suitable for telecom power system equipment use.
Model | Rate Voltage (V) | Rate Capacity (AH/10Hr) | Terminal | Dimension(mm) | Weight | Terminal | ||||||||
Length | Width | Height | Total Height | |||||||||||
mm | Inch | mm | Inch | mm | Inch | mm | Inch | KG | Lbs | |||||

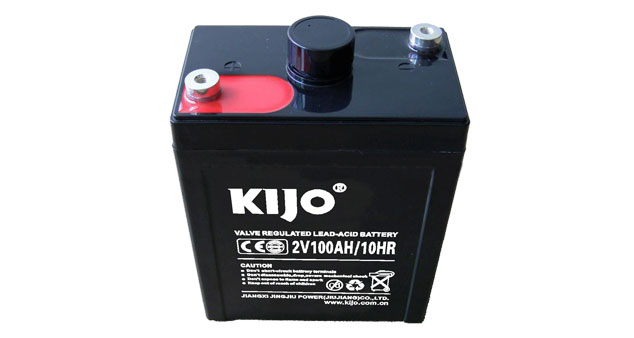

JL2-100 | 2 | 100 | M6 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 220 | 8.66 | 6.00 | 13.20 | M8 |

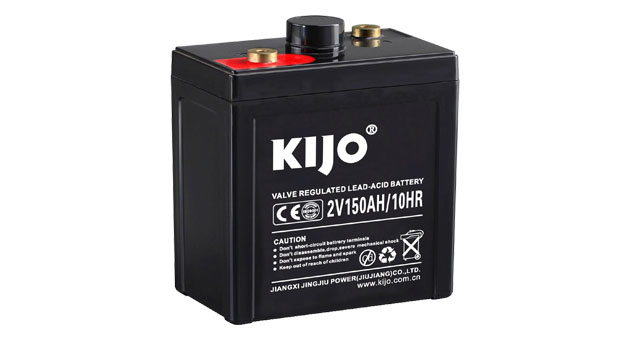

JL2-150 | 2 | 150 | M8 | 171 | 6.73 | 102 | 4.02 | 206 | 8.11 | 222 | 8.74 | 8.30 | 18.26 | M8 |

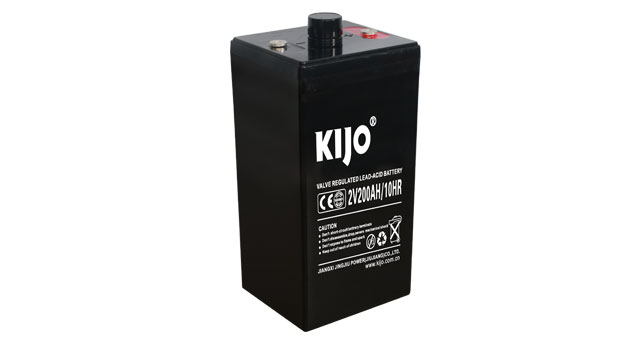

JL2-200 | 2 | 200 | M8 | 171 | 6.73 | 110 | 4.33 | 330 | 12.99 | 365 | 14.37 | 12.80 | 28.16 | M8 |
JL2-250 | 2 | 250 | M8 | 171 | 6.73 | 151 | 5.94 | 330 | 12.99 | 366 | 14.41 | 16.00 | 35.20 | M8 |

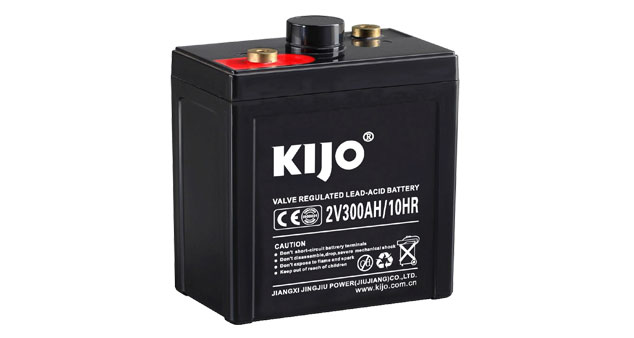

JL2-300 | 2 | 300 | M8 | 171 | 6.73 | 151 | 5.94 | 330 | 12.99 | 366 | 14.41 | 18.00 | 39.60 | M8 |

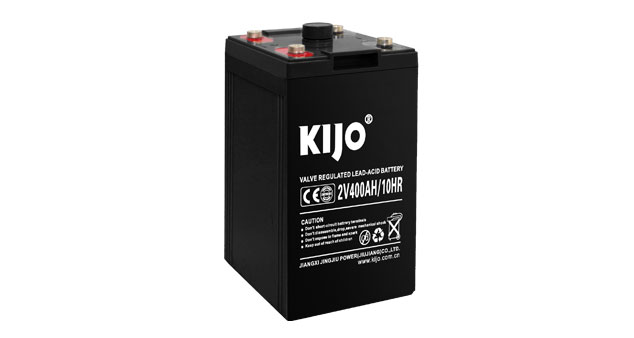

JL2-400 | 2 | 400 | M8 | 211 | 8.31 | 175 | 6.89 | 329 | 12.95 | 367 | 14.45 | 25.50 | 56.10 | M8 |

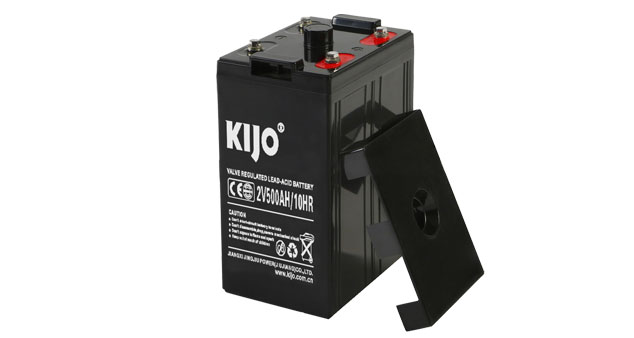

JL2-500 | 2 | 500 | M8 | 241 | 9.49 | 172 | 6.77 | 330 | 12.99 | 366 | 14.41 | 29.50 | 64.90 | M8 |

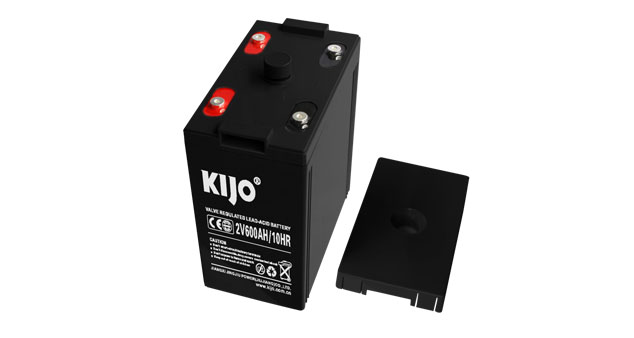

JL2-600 | 2 | 600 | M8 | 301 | 11.85 | 175 | 6.89 | 330 | 12.99 | 366 | 14.41 | 35.60 | 78.32 | M8 |
JL2-800 | 2 | 800 | M8 | 410 | 16.14 | 175 | 6.89 | 330 | 12.99 | 365 | 14.37 | 50.00 | 110.20 | M8 |
JL2-900 | 2 | 900 | M8 | 475 | 18.70 | 175 | 6.89 | 328 | 12.91 | 365 | 14.37 | 60.00 | 132.00 | M8 |
JL2-1000 | 2 | 1000 | M8 | 475 | 18.70 | 175 | 6.89 | 328 | 12.91 | 365 | 14.37 | 63.00 | 138.60 | M8 |
JL2-1200 | 2 | 1200 | M8 | 475 | 18.70 | 175 | 6.89 | 328 | 12.91 | 365 | 14.37 | 68.00 | 149.60 | M8 |
JL2-1500 | 2 | 1500 | M8 | 401 | 15.79 | 351 | 13.82 | 342 | 13.46 | 378 | 14.88 | 96.00 | 211.20 | M8 |
JL2-2000 | 2 | 2000 | M8 | 491 | 19.33 | 351 | 13.82 | 343 | 13.50 | 383 | 15.08 | 128.00 | 281.60 | M8 |
JL2-3000 | 2 | 3000 | M8 | 712 | 28.03 | 353 | 13.90 | 341 | 13.43 | 382 | 15.04 | 192.00 | 422.40 | M8 |
Valve Regulated design, no free liquid electrolyte, Maintenance -free
Designed floating service life: 15 years (25℃)
Operating temperature range: -15-35℃
Thicker plate design, long service life
Self-discharge rate≤ 3% per month
Telecom power system
UPS system
DATA centre
Solar power
Wind energy
etc
